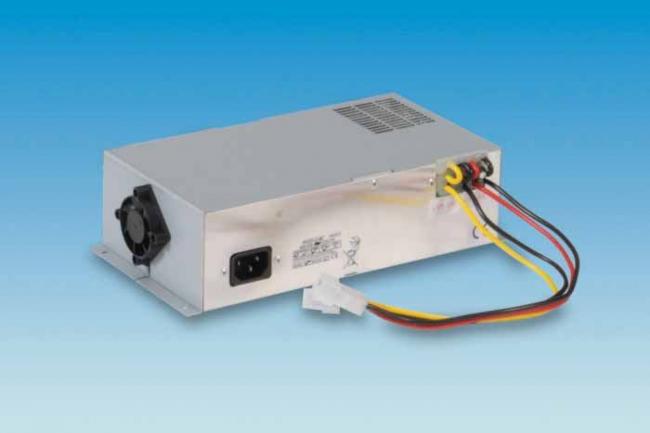

Dual Stage Charger

Submit a Query

Description

Main Description

Also available: 10amp, 20amp

The complete 12 Volt supply unit, a fully automatic supply direct to caravan appliance and eletronically controlled battery charging.

Specification

Input 180 - 264 Volts ac Output 1 Mains 13v 20amp Red wire = 13v Black wire = 0v output 2 Battery Charger 14.2v - 13.8v (6amp) 3 stage charger Yellow wire = batt + Black wire = batt - Battery Charger Timing cycle (3 Stage Charging) 1. Boost At switch on the charger is in boost phase where the charger output delivers 6amps constant current output delivers 6amps constant current until o/p voltage reaches 14.2v. At this level the charger enters Equalisation phase. 2. Equalisation Charger output remains at 14.2v (constant voltage) for 4 hours. After 4 hours the charger enters Float phase. 3. Float charger output swtiches to 13.8v (constant voltage) for 20 hours. Note: Charger performs Equalisation and Float every 24 hours unless the battery voltage falls below 14.2v in Equalisation mode in which case Boost mode will restart. Battery Drain when the mains are Off this unit has a very low battery drain, the figure being only 0.0025 of an amp. Fan Operation to ensure silent night time operation the fan switches off at low loads. The fan will start to operate once the load current is in the region of 5amp - 8amp. Dimensions: Width 250mm x Depth 125mm x Height 67mm.
